Dredge Turning Gland
Sanyang Heavy Machinery dredge turning gland is for side suction pipe system of the trailing suction hopper dredger.Dredge turning gland is bolted between the lower suction pipe and the cardan hinge in a trailing pipe of a Trailing Suction Hopper Dredger.
It is designed by modular principle for heavy duty operation in any type of soil anywhere in the world. The turning gland enables the drag head to better follow.the sea bottom or ocean floor. The turning gland allows a radial rotation in both directions of 15°. The turning gland consists of an inner and an outer pipe and has mechanical stops to limit rotation. Two bearings and a sealing make for a trouble-free use.
| Pipe Inside Diameter | Outside?Diameter | Pitch Circle?Diameter | Diameter?of?Bolt Hole | Bolt?Quantity | Bolt Size | Flange?Thickness | Over all?Length | Total Weight |
| [mm] | [mm] | [mm] | [mm] | ? | [mm] | [mm] | [mm] | [kg] |
| 500 | 670 | 620 | 26 | 20 | M24 | 38 | 1,500 | 1,320 |
| 600 | 780 | 725 | 30 | 20 | M27 | 42 | 1,650 | 1,770 |
| 700 | 895 | 840 | 30 | 24 | M27 | 50 | 1,800 | 2,382 |
| 800 | 1,015 | 950 | 33 | 24 | M30 | 56 | 1,850 | 3,059 |
| 900 | 1,115 | 1,050 | 33 | 28 | M30 | 62 | 1,900 | 3,652 |
| 1,000 | 1,230 | 1,160 | 36 | 28 | M33 | 70 | 1,950 | 4,393 |
| 1,100 | 1,275 | 1,220 | 36 | 28 | M33 | 76 | 2,000 | 5,047 |
| 1,200 | 1,455 | 1,380 | 39 | 32 | M36 | 83 | 2,050 | 5,610 |
| 1,300 | 1,560 | 1,480 | 39 | 32 | M36 | 83 | 2,100 | 6,753 |
| 1,400 | 1,675 | 1,590 | 42 | 36 | M39 | 83 | 2,150 | 7,471 |

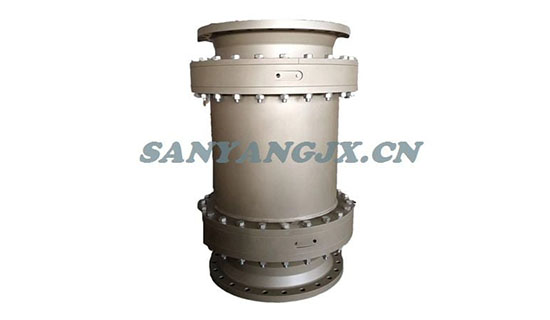

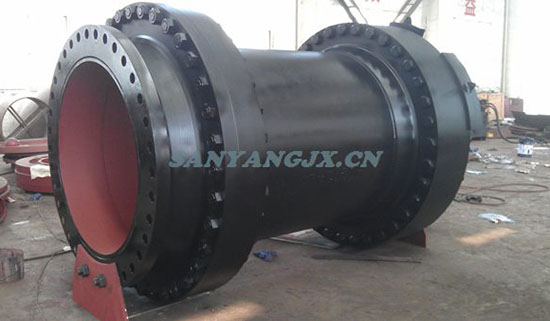

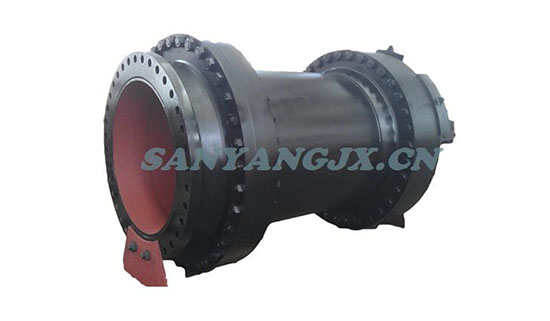

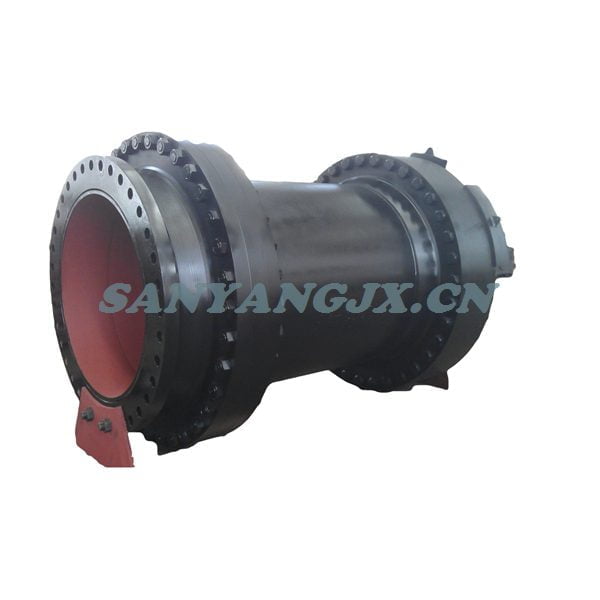

Dredge Turning Gland – More Photos
Sanyang Heavy Machinery ?offers you the one-stop service from design to after-sale service as a whole process of our business.
Product Range:
Dredging components and other customized products.
Customer Range:
Shipyards, Shipowners, Ship Managers, Engineering Companies, Constructors, Trading Companies, Wholesalers,etc.
Design Ability:
We have a very?experienced, creative, and cooperative team,?which can design the whole propulsion system according to different vessels and requirements.
Material Preparation:
Our purchasing dept. will choose the material from many aspects, such as cost, quality, machining, environment protection, etc.
Machining & Test:
We have advanced processing equipment with responsible crews. Our factory also have strict quality control process and test skills.
After-sale Service:
You will get the?after-sale service all over the world.?Convenient, Fast,?High Efficiency, World-wide,?etc.
Best service will be enjoyed by?cooperating with us.
Packaging:
1. Wooden Case;
2. Iron Frame;
For different shipping methods and destinations, we will suggest different packaging.
If you have any requirement for the packaging, please let me know during enquiry.
Shipping:
We offer our clients one-stop service.The shipping tool can be by sea, by air or by train.
It depends on the destination of our products.
And we will suggest you the min. cost and min. damage of the products.
