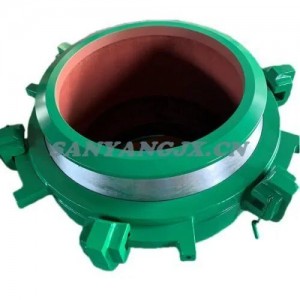

Dredge Ball Joint
Sanyang Machinery Dredge ball joint is a connection between two pipes that are used to transport a mixture of water and sand from a dredger to the discharging area.
Sanyang Heavy Machinery dredge ball joint is designed to provide flexibility to the pipeline in all round direction up to a limited angle.
To provide customer with the best suitable solution and lowest cost, they are designed in several types.

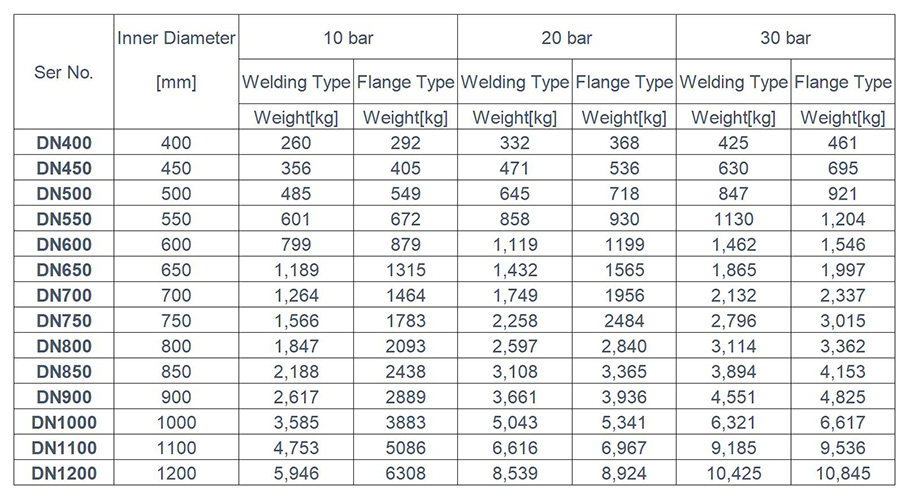

That gives them variations in the internal pipe diameters from 400 to 1200mm, tilting angle from 15 to 22.5 degrees, and duties from 10 bar to 30 bar or 40 bar.
We have produced thousands of dredge ball joints and delivered them all over world.
In addition to our wide range of standard designs we can offer them with following options:
Alternative swivel angles;
Higher operating pressures;
Customized flanges on female and male part;
Customized connections on female and male part for direct welding on pipes;
liners in male and/or female part;
Resistant wear liner.
Sanyang dredge ball joint can be used in several situations and are suitable for the following applications:

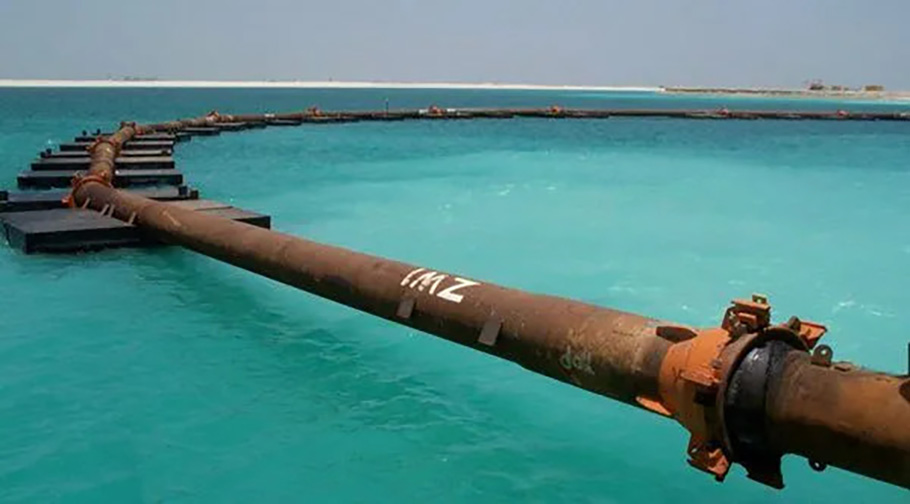

Connection between floating pipe lines;
Connection between pontoons;
Ship to shore connection;
Side discharge connections;
Connection between pipe lines on mountainous or hilly terrains
Benefits
Easy assembly and dis-assembly
Low maintenance required

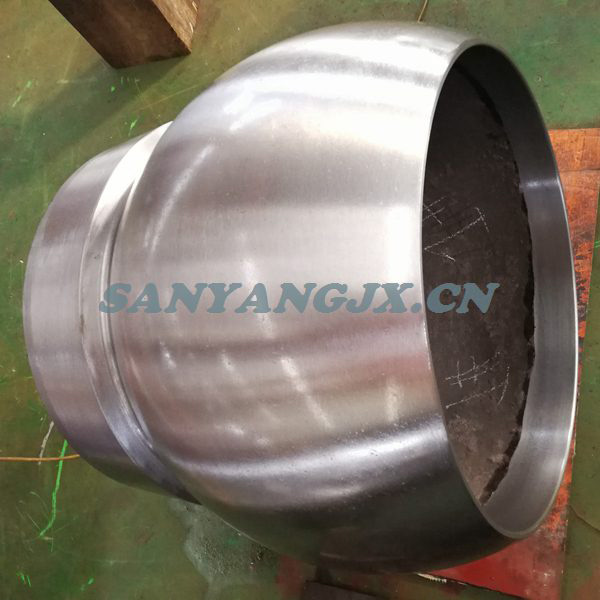

Low friction between ball and gland due to grease grooves and polished ball and gland face
Replaceable liners made from wear resistant materials
Quick fix and release of locking
Features
Grease grooves provided in the gland

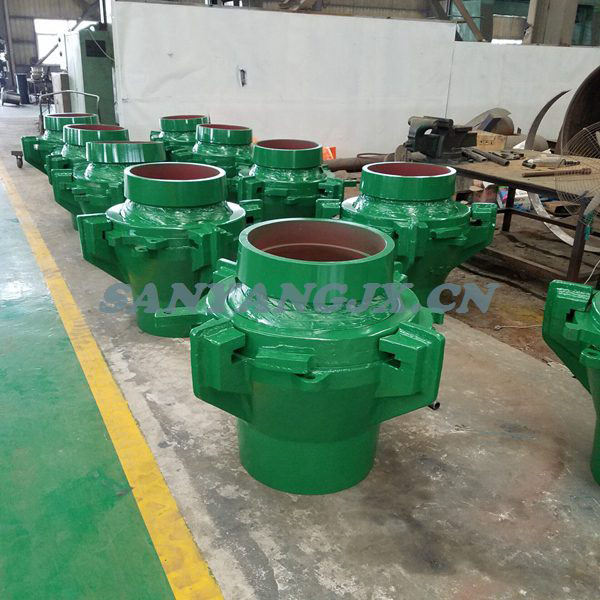

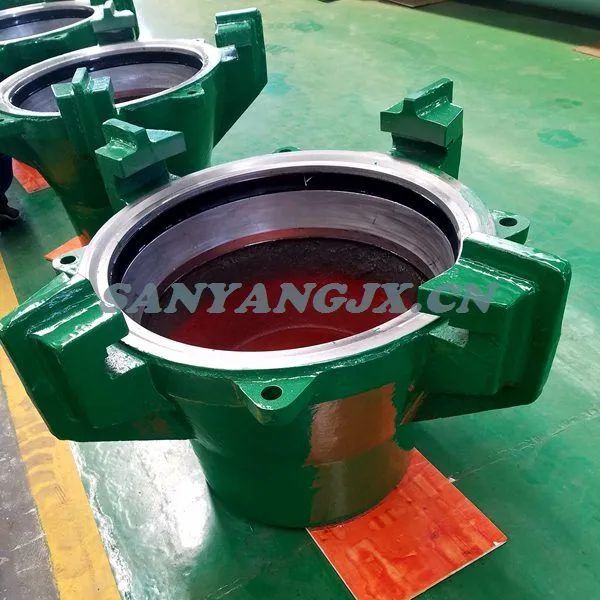

Stiffened dredge ball joint case lugs
Quick fix and release locking due to a pin and chain connection

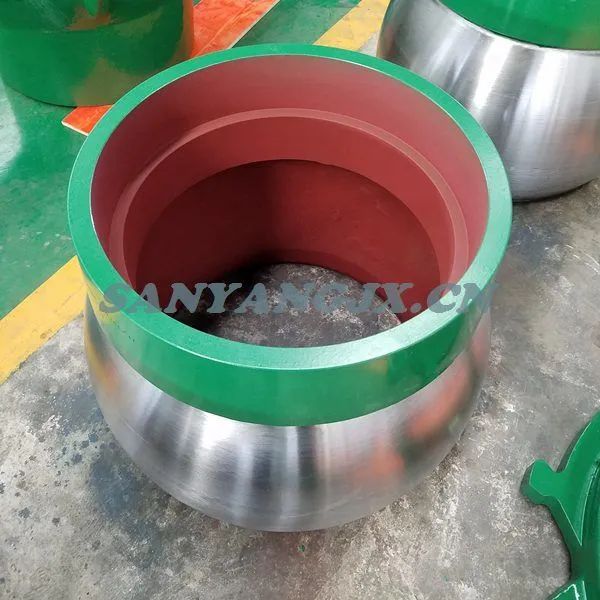

Pipe welded through ball
Maximum thickness provided at the neck of the ball joint
Options

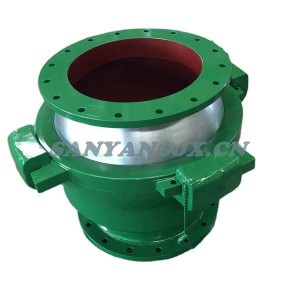

Can be provided with welded pipe and flange execution
Gland liner
Extra or special lifting lugs
Different types of locking
If you have any interests, pls kindly refer to the file Detailed Catalogue for Dredge Ball Joint
Sanyang Heavy Machinery ?offers you the one-stop service from design to after-sale service as a whole process of our business.
Product Range:
Dredging components and other customized products.
Customer Range:
Shipyards, Shipowners, Ship Managers, Engineering Companies, Constructors, Trading Companies, Wholesalers,etc.
Design Ability:
We have a very?experienced, creative, and cooperative team,?which can design the whole propulsion system according to different vessels and requirements.
Material Preparation:
Our purchasing dept. will choose the material from many aspects, such as cost, quality, machining, environment protection, etc.

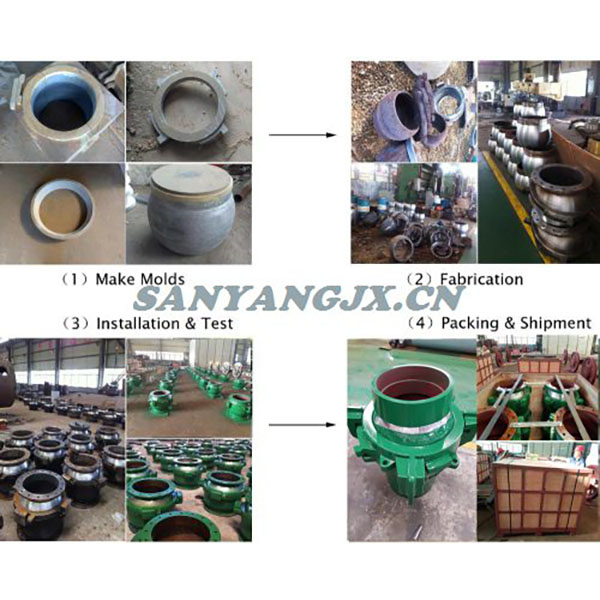

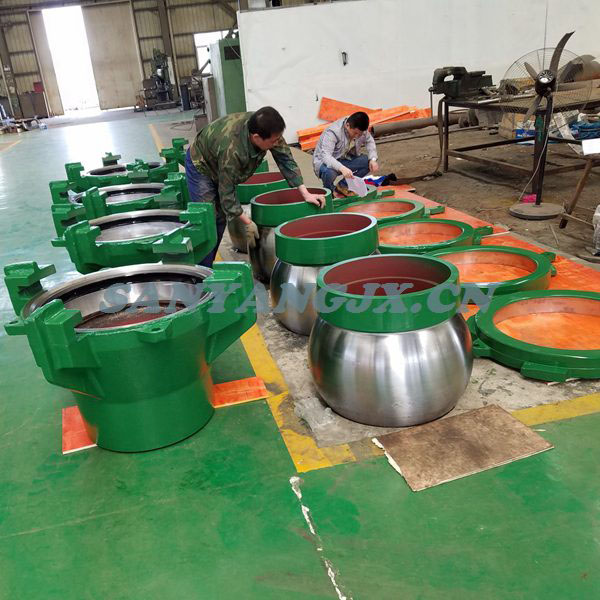

Machining & Test:
We have advanced processing equipment with responsible crews. Our factory also have strict quality control process and test skills.
After-sale Service:
You will get the?after-sale service all over the world.?Convenient, Fast,?High Efficiency, World-wide,?etc.
Best service will be enjoyed by?cooperating with us.

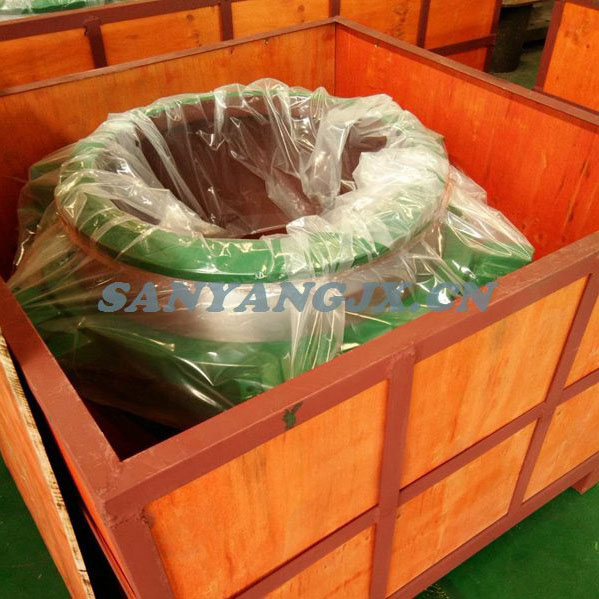

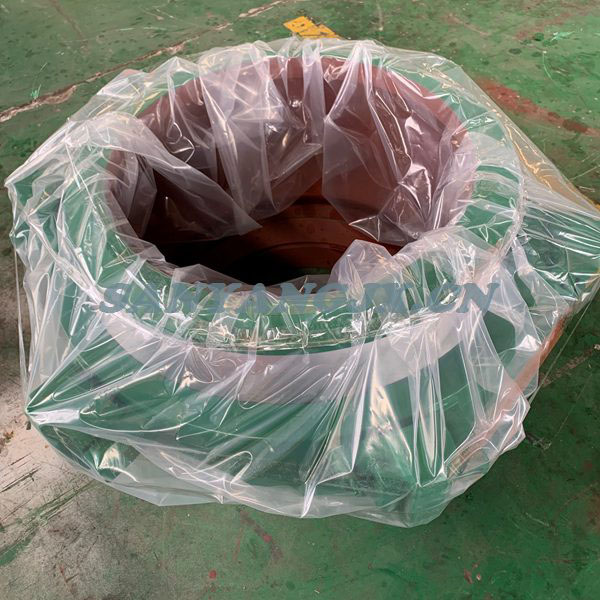

Packaging:
1. Wooden Case;
2. Iron Frame;
For different shipping methods and destinations, we will suggest different packaging.
If you have any requirement for the packaging, please let me know during enquiry.
Shipping:
We offer our clients one-stop service.The shipping tool can be by sea, by air or by train.
It depends on the destination of our products.
And we will suggest you the min. cost and min. damage of the products.
