Dredge Gantry

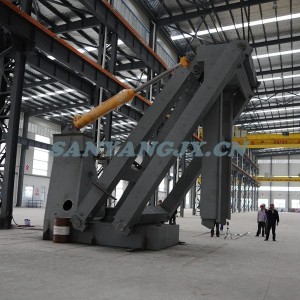

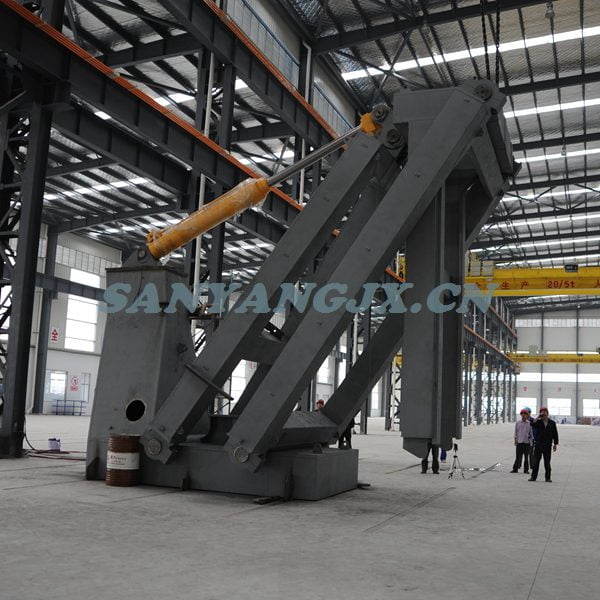

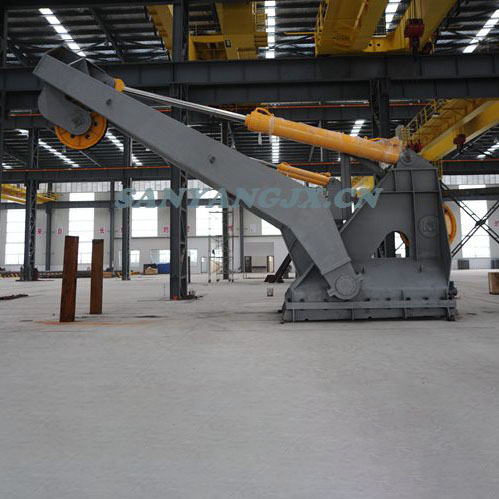

Sanyang Heavy Machinery dredge gantry is available in a wide range of sizes. Dredge gantry is located near the draghead and mainly consists of a fixed gantry part, a pivoting A-frame, a hydraulic cylinder and a guide sheave for the hoisting wire.
Dredge Gantry – Intermediate Gantry
The fixed part of the intermediate gantry is a closed steel construction, welded on deck. The gantry is equipped with a swiveling sheave, which adjusts automatically to the direction of the hoisting wire and provided with proximity switches for detecting of pipe.positions. The winch is remote controlled and includes a multi-turn encoder and a rope limit switch.
Dredge Gantry – Trunnion Gantry
The fixed part of the trunnion gantry is a closed steel construction, welded on deck. The portal frames support a guide frame, which remains vertical during movements of the gantry and guides the sliding piece with the trunnion elbow. A service frame carries measuring cables to the sliding piece and suction pipe.
Dredge Gantry – Draghead Gantry
The fixed part of the draghead gantry is a closed steel construction, welded on deck. The gantry is equipped with a swiveling sheave, which adjusts automatically to the direction of the hoisting wire and provided with proximity switches for detecting of pipe positions. The winch is remote controlled and includes a multi-turn encoder and a rope limit switch.
More Photos
Sanyang Heavy Machinery ?offers you the one-stop service from design to after-sale service as a whole process of our business.
Product Range:
Dredging components and other customized products.
Customer Range:
Shipyards, Shipowners, Ship Managers, Engineering Companies, Constructors, Trading Companies, Wholesalers,etc.
Design Ability:
We have a very?experienced, creative, and cooperative team,?which can design the whole propulsion system according to different vessels and requirements.
Material Preparation:
Our purchasing dept. will choose the material from many aspects, such as cost, quality, machining, environment protection, etc.
Machining & Test:
We have advanced processing equipment with responsible crews. Our factory also have strict quality control process and test skills.
After-sale Service:
You will get the?after-sale service all over the world.?Convenient, Fast,?High Efficiency, World-wide,?etc.
Best service will be enjoyed by?cooperating with us.
Packaging:
1. Wooden Case;
2. Iron Frame;
For different shipping methods and destinations, we will suggest different packaging.
If you have any requirement for the packaging, please let me know during enquiry.
Shipping:
We offer our clients one-stop service.The shipping tool can be by sea, by air or by train.
It depends on the destination of our products.
And we will suggest you the min. cost and min. damage of the products.
