Dredge Overflow
Sanyang Heavy Machinery dredge overflow systems are available for all sizes of trailing suction hopper dredgers. They are hydraulically operated, and their operation can be fully integrated in the automatic dredging control system if desired.
Sanyang Machinery designs the dredge overflow systems to optimize the efficiency of the dredging process, by ensuring the maximum retention of solids.
Dredge overflow drains excess process water overboard. An effective overflow system induces little turbulence, allowing the mixture maximum time to settle. All overflows are designed with the needs of a specific vessel in mind. A good overflow system can significantly raise net production.

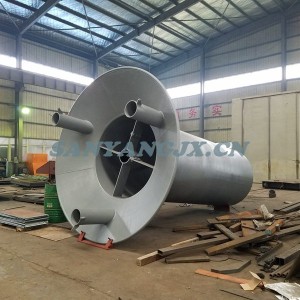

Dredge overflow system generally consists of a fixed outer part and a sliding inner part, both tubular. At the top of the moving part is a cone or rectangular-shaped.weir, the purpose of which is to obtain a non-turbulent, uniform flow to encourage settling. The moving part is raised or lowered by means of a hydraulic cylinder attached to the fixed part.
If required, a mechanical or electro-mechanical position indicator can be fitted. The range of the moving part corresponds to the desired minimum and maximum overflow levels. The stroke can be enlarged by the use of a telescopic three-part overflow.
Dredge Overflow – FEATURES:
●?Telescopic system allows optimal overflow levels
●?Maximum retention of solids
●?Increased net production
●?Different design of optional anti-turbidity valve

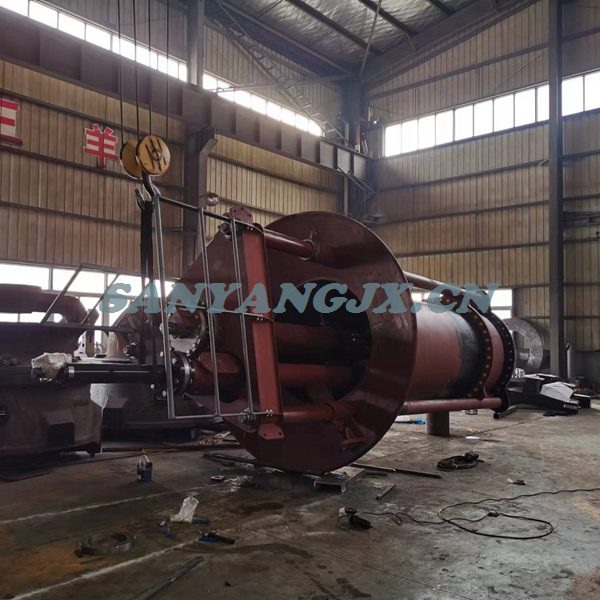

Dredge Overflow – More Photos
Sanyang Heavy Machinery ?offers you the one-stop service from design to after-sale service as a whole process of our business.
Product Range:
Dredging components and other customized products.
Customer Range:
Shipyards, Shipowners, Ship Managers, Engineering Companies, Constructors, Trading Companies, Wholesalers,etc.
Design Ability:
We have a very?experienced, creative, and cooperative team,?which can design the whole propulsion system according to different vessels and requirements.
Material Preparation:
Our purchasing dept. will choose the material from many aspects, such as cost, quality, machining, environment protection, etc.
Machining & Test:
We have advanced processing equipment with responsible crews. Our factory also have strict quality control process and test skills.
After-sale Service:
You will get the?after-sale service all over the world.?Convenient, Fast,?High Efficiency, World-wide,?etc.
Best service will be enjoyed by?cooperating with us.
Packaging:
1. Wooden Case;
2. Iron Frame;
For different shipping methods and destinations, we will suggest different packaging.
If you have any requirement for the packaging, please let me know during enquiry.

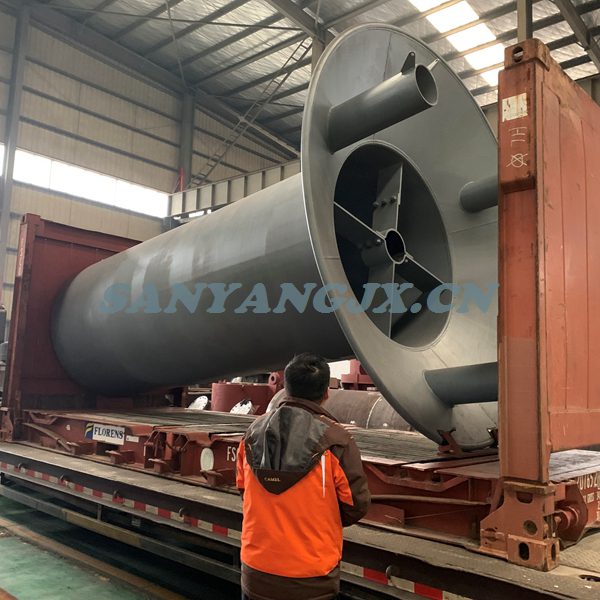

Shipping:
We offer our clients one-stop service.The shipping tool can be by sea, by air or by train.
It depends on the destination of our products.
And we will suggest you the min. cost and min. damage of the products.
